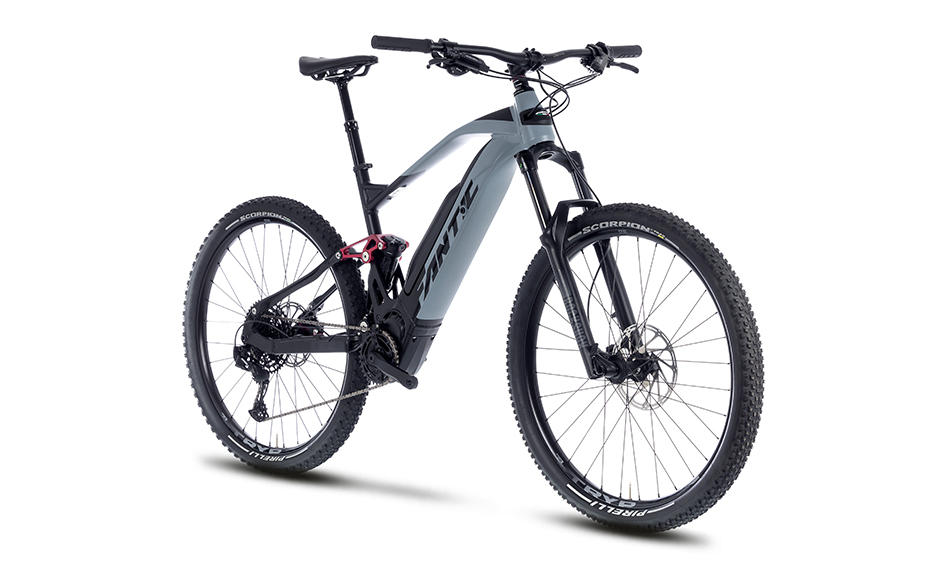

The XTF 1.6 CARBON FACTORY is equipped with the BROSE S MAG MOTOR, designed for the most competitive riders. THE BEST ELECTRIC MOTOR FOR E-MTB (*). It's compactness, low weight (only 2.8kg), instant power and more control on steep terrain, no pedaling resistance even with the motor off. Extremely quiet with no vibrations and a maximum torque of 90Nm (the best performing on the market).

The battery is 720 Wh and is characterized by long life and so more fun and performance, even when it given high operational workload o stresses.

Click here to find out more (*).

FRAME DESIGN

The exclusive carbon frame of the XTF 1.6 Carbon Factory significantly reduces the overall weight of the mountain bike, enhancing its handling and ride quality. A newly designed front section allows for internal cable routing, while the shape of the top tube ensures an even weight distribution. This results in a consistent stiffness throughout the frame, leading to superior riding performance.

The motor has been seamlessly integrated into the frame for enhanced protection, and a unique impact guard has been added for extra durability. The motor and battery positioning has been optimized, bringing them closer to the bike’s center of gravity and lowering the bottom bracket height. This ensures better weight distribution, resulting in greater stability and improved handling.

CONTROL & HANDLING.

This bike features Fantic’s patented Flip Chip technology, allowing the rear wheel to be mounted in two different positions. Riders can switch between 29” or 27.5” wheels, while maintaining a shorter chainstay length for an always responsive ride.

The rocker link has been completely redesigned for this specific Trail segment. It remains compact and lightweight, further improving our Full Floater suspension system, which maximizes rear wheel traction on any terrain.

SPECIFICATIONS

The XTF 1.6 Carbon Factory is a full-carbon bike built with premium, high-end components:

• SRAM X01 AXS wireless drivetrain.
• Magura MT Trail carbon brakes with Braking S3 Batfly 180mm rotors (6-bolt).
• RockShox Reverb AXS wireless dropper post.

For superior downhill performance, the RockShox Lyrik fork with RC2 cartridge and 160mm of travel offers enhanced precision and control.

Additional high-performance components include:

• FSA KFX carbon 29” wheels.
• Exclusive FANTIC RACING integrated FLAT-17° handlebar, 780mm wide.

Swipe through the gallery to explore all the details!
